-10%

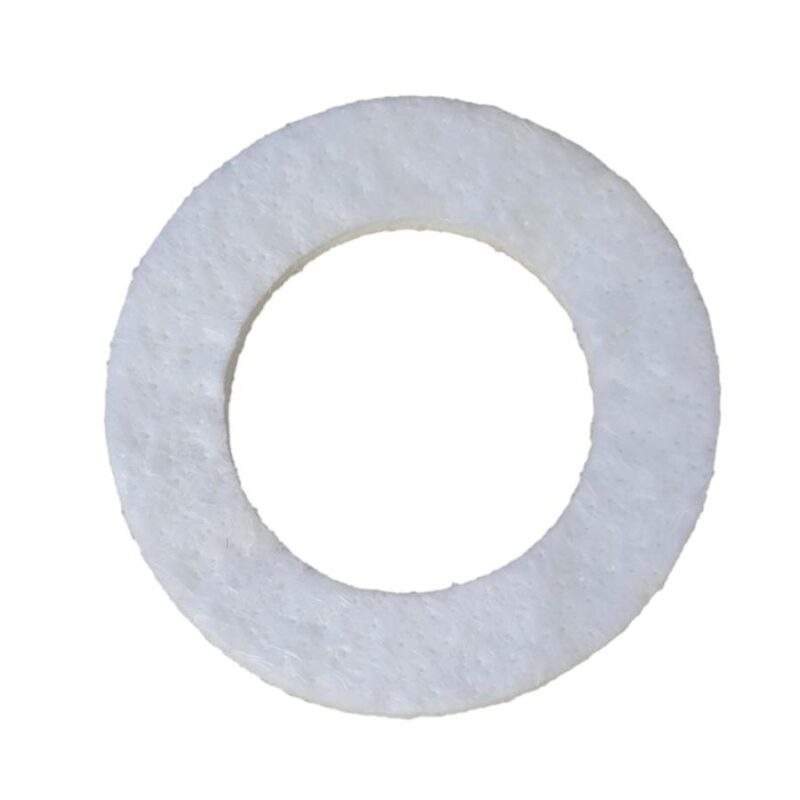

Description DS-B-10B – Burner Gasket 50319 202025 / 50319-202025 / 50319202025 Other Burner Gaskets: Daystar Models from 2010 and after and serial number 01F- lot after use DS-B-10C MPX Models use MPX-2-01 KBE5S, KBE5L and KBE5L with a high/low switch use KSL-R-06 EPX Model use EPX-2-10 VAL6 is a series of heaters. It is not your model name. We suggest you refer to your manual that came with your machine for correct part number. If you still have questions you can call our service or parts department at 800-846-5157.
| brands | China |
|---|
Specification:
- Operating Voltage: 12 or 24 VDC ?20%
- Output Current: 0.5 ~ 15 A
- Run Speed Adjustment range: Speed adjustment Potentiometer (30 turn), 4 Segment Dip Switch Adjustable From 600 ~ 9500 Hz
- Idle Speed Adjustment Range: Run Speed 30 ~ 85%
- Ramp Time: 3 ~ 20 Sec
- Remote Speed Pot: Ext. Remote speed pot terminal 6, 7, 8 (ILS) and 6, 7, 9 connect a 5K? potentiometer ?5% adjustment range.
- Temp. Stability: <0.01%
- Run Speed Stability: ? 0.25 % at steady state
- MPU input signal: 1 ~ 120VAC RMS
- Droop: 4%
- Adjustment: Run Speed, Idle Speed, Ramp Time, Droop, Gain, Integration
- Mechanical Vibration: 1G @ 18 ~ 30 Hz, 2.5G @ 48 ~ 70 Hz
- Relative Humidity: < 95%
- Operating Temperature: -40 ~ 85?
- Storage Temperature: -40 ~ 85?
- Dimensions: 147mm L * 114mm W * 50mm H
- Weight: 690g ? 2%
