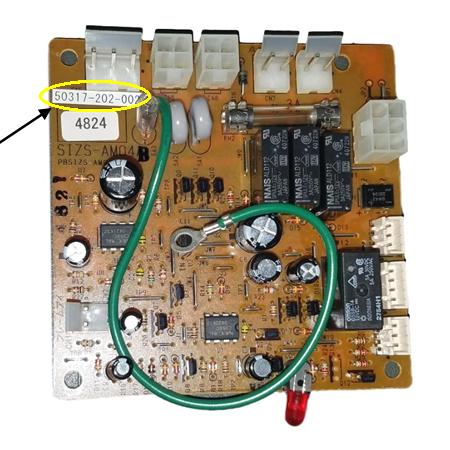

Description DS-B-17 – Burner Control Circuit Board 50317 202002 / 50317-202002 / 50317202002 Other Circuit Boards: DAYSTAR Models made from 2005 SN N-01 till 2012 use DS-B-17A DAYSTAR Model made from 2013 with SN 01C- till current – Use DS-B-17C (Same as a DS-B-17B) KBE5S Models made from 2006/2007 to 2012/13 – WITHOUT OVER VOLTAGE Use KSL-B-25B KBE5S Models made from 2006 SN 01J- till 2012/2013 SN 01D – WITH OVER VOLTAGE – Use KSL-B-25C KBE5S Models made from 2012/2013 SN 01C-01 till 2017 use KSL-B-25E KBE5S Models made from 2017 SN 01Y till present use KSL-B-25F KBE5L 2-Step Models made from 2010/2011 SN 01F-04 till 2012/2013 SN 01D-03 use KSL-B-25D KBE5L 2-Step made from 2012/13 SN 01D-03 till 2017 use KSL-B-25E KBE5L 2-Step made from 2017 SN 01Y till present use KSL-B-25F VAL6 is a series of heaters. It is not the model name. We highly suggest you refer to your manual that came with your machine for correct part number. If you still have questions you can call our service or parts department at 800-846-5157.
| brands | China |
|---|
Specification:
- Operating Voltage: 12 or 24 VDC ?20%
- Output Current: 0.5 ~ 15 A
- Run Speed Adjustment range: Speed adjustment Potentiometer (30 turn), 4 Segment Dip Switch Adjustable From 600 ~ 9500 Hz
- Idle Speed Adjustment Range: Run Speed 30 ~ 85%
- Ramp Time: 3 ~ 20 Sec
- Remote Speed Pot: Ext. Remote speed pot terminal 6, 7, 8 (ILS) and 6, 7, 9 connect a 5K? potentiometer ?5% adjustment range.
- Temp. Stability: <0.01%
- Run Speed Stability: ? 0.25 % at steady state
- MPU input signal: 1 ~ 120VAC RMS
- Droop: 4%
- Adjustment: Run Speed, Idle Speed, Ramp Time, Droop, Gain, Integration
- Mechanical Vibration: 1G @ 18 ~ 30 Hz, 2.5G @ 48 ~ 70 Hz
- Relative Humidity: < 95%
- Operating Temperature: -40 ~ 85?
- Storage Temperature: -40 ~ 85?
- Dimensions: 147mm L * 114mm W * 50mm H
- Weight: 690g ? 2%
