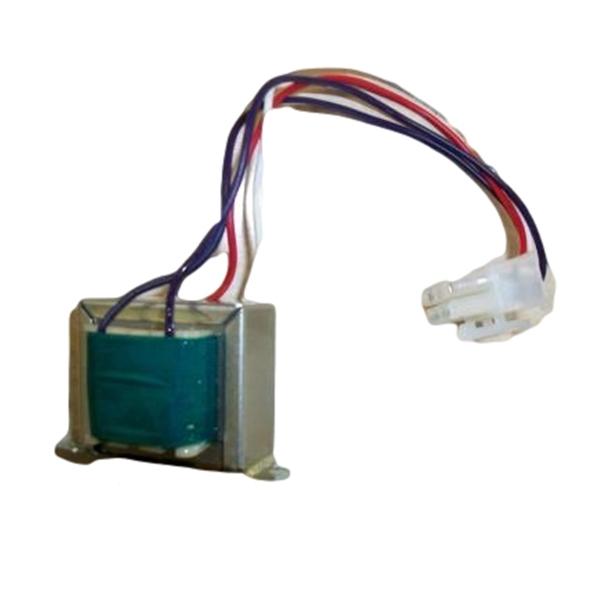

Description KSL-B-24, DS-B-15, EPX-2-36, NA-B-12 – Step Down Transformer Other sizes: Daystars made from 2013 – DS-B-15A MPX Models – MPX-2-20 Cross Reference: KSL-B-24 / DS-B-15 / EPX-2-36 / NA-B-12 / 50300 201005 / 50300-201005 / 50300201005 VAL6 is a series of heaters. It is not your model’s name. We suggest you refer to your manual that came with your machine for correct part number. If you still have questions, you can call our service or parts department at (800) 846-5157.
| brands | China |
|---|
Specification:
- Operating Voltage: 12 or 24 VDC ?20%
- Output Current: 0.5 ~ 15 A
- Run Speed Adjustment range: Speed adjustment Potentiometer (30 turn), 4 Segment Dip Switch Adjustable From 600 ~ 9500 Hz
- Idle Speed Adjustment Range: Run Speed 30 ~ 85%
- Ramp Time: 3 ~ 20 Sec
- Remote Speed Pot: Ext. Remote speed pot terminal 6, 7, 8 (ILS) and 6, 7, 9 connect a 5K? potentiometer ?5% adjustment range.
- Temp. Stability: <0.01%
- Run Speed Stability: ? 0.25 % at steady state
- MPU input signal: 1 ~ 120VAC RMS
- Droop: 4%
- Adjustment: Run Speed, Idle Speed, Ramp Time, Droop, Gain, Integration
- Mechanical Vibration: 1G @ 18 ~ 30 Hz, 2.5G @ 48 ~ 70 Hz
- Relative Humidity: < 95%
- Operating Temperature: -40 ~ 85?
- Storage Temperature: -40 ~ 85?
- Dimensions: 147mm L * 114mm W * 50mm H
- Weight: 690g ? 2%
