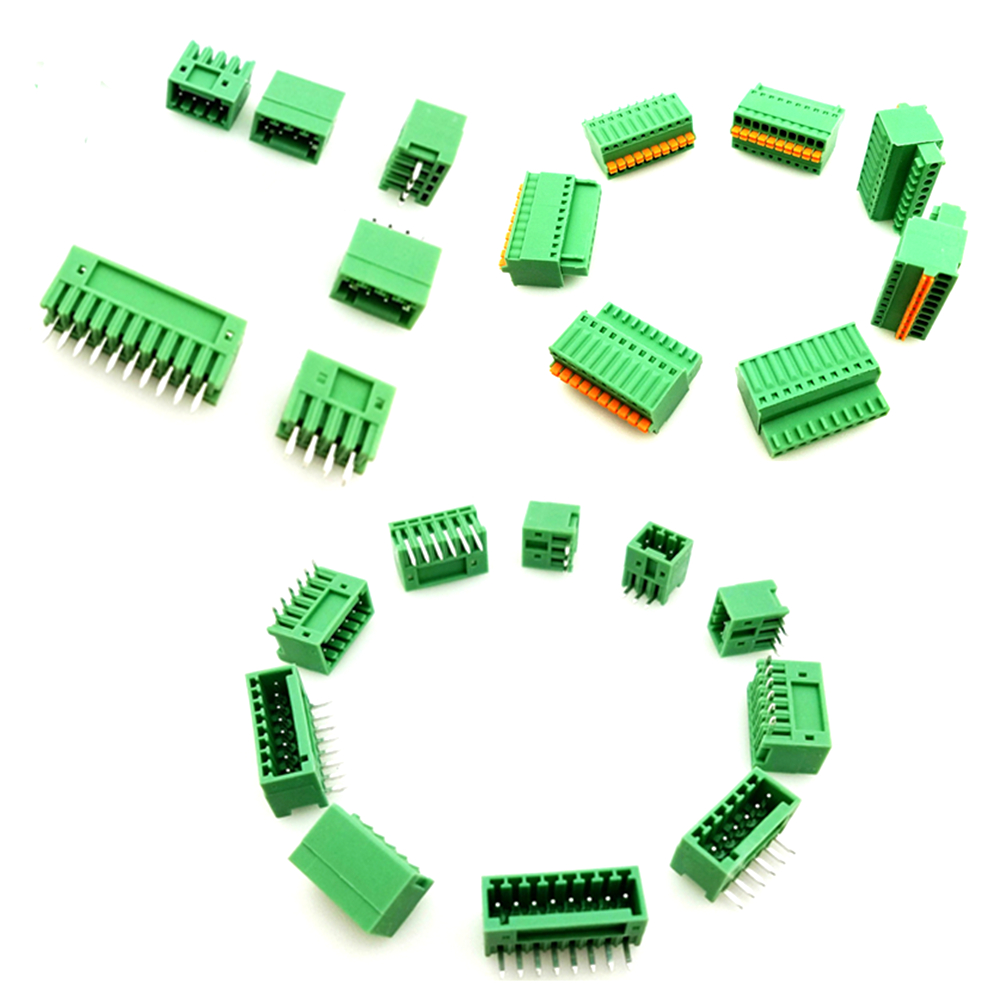

Green 2.5mm Pitch Male Female PCB Electrical Plug-In Pluggable Spring Type Terminal Block|100Pcs

Description Green 2.5mm Pitch Male Female PCB Electrical Plug-In Pluggable Spring Type Terminal Block Feature 1.Ways: From 2P to 12P; 2.Pitch: 2.5mm; 3.Color: Green; 4.Female: Common Type(GKD); 5.Male: Straight Pins Cover Sides(GVC), Right Angle Pins Cover Sides(GRC); Electrical 1.Rated Voltage: 125V; 2.Rated Current: 4A; 3.Contact Resistance: 20mΩ; 4.Insulation Resistance: 5000MΩ@1000V; 5.Withstand Voltage: AC1250V@1Min; Mechanical Female: 1.Contact:  Phospher Bronze, Ni-plated; 2.Plastic: PA66 UL94V-0; 3.Wire Applicable: 28~20AWG; 4.Strip Length: 8mm; 5.Temperature:   -40℃ ~ 105℃; 6.Transient Temperature:   250℃ for 5 seconds; Male: 1.Pins:  Brass with tin-plated; 2.Plastic: PA66 UL94V-0; 3.Temperature:   -40℃~ 105℃; 4.Transient Temperature:   250℃ for 5 seconds; Related
