Sale!

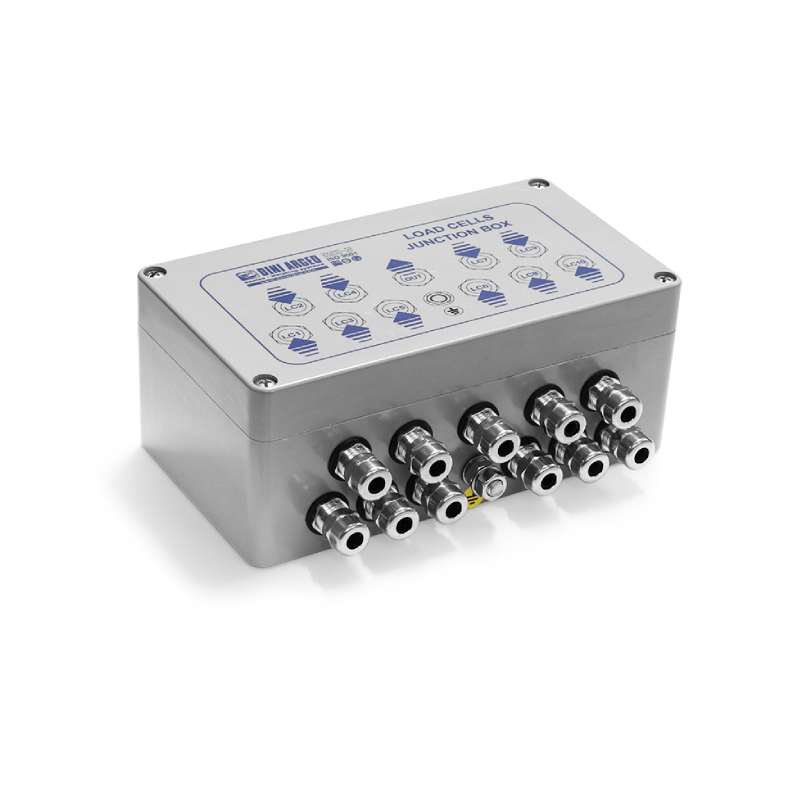

“JB10Q” Equalised Junction Box, With Up To 10 Load Cells
$ 94.00
inclusive of all taxes
100% Secure Payment
24/7 Dedicated support
Free shipping on all orders over $40.00
Exchange or money back guarantee for all orders
Related products
ANALOGIC “JB10Q” TECHNICAL FEATURES Reinforced polyester case in fiberglass, ideal for harsh environments. 10 1 waterproof metallic cable glands. Surge Arresters against electric discharges and disturbances. IP66 protection degree or IP68 with the use of GELBOX anti condensation gel (optional, you need 1200ml of gel). Maximum input voltage: 24Vdc. Maximum input current: 700mA. Maximum input load cell signal: 1000mV. Temperature effect: 50ppm/°C. Compact dimensions (lxwxh): 220x120x90mm. Removable terminals.
