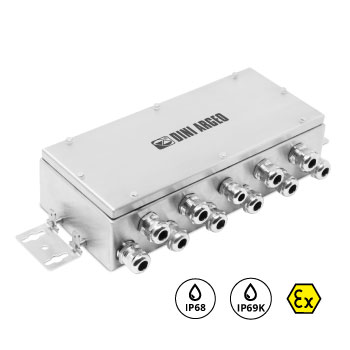

“JB10QIP69K” Equalised Junction Box With 10 Inputs, In Stainless Steel With Ip68 And Ip69k Protection

AISI 304 stainless steel structure (AISI 316 upon request) Protection rating: IP68 and IP69K IP69K anti-condensation valve fitted as standard 11 metal cable glands PG11 (cable Ø 5-11mm) Maximum input voltage: 24Vdc Maximum input current: 700mA Maximum input cell signal: 1000mV Temperature effect: 50ppm/°C 10 cell inputs with removable screw connectors Dimensions with cable glands (lxwxh): 343x132x66mm (brackets not included)
