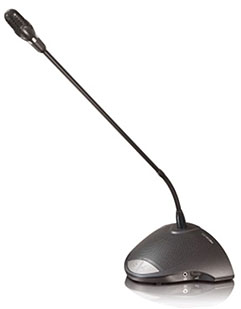

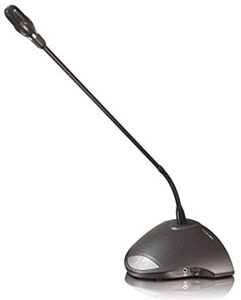

BOSCH 900 ULTRO – CCS-CML long chairman unit

Description CCS 900 Ultro Conference System Chairman Unit CCS-CML with Long Microphone Priority button for chairman with attention tone Ergonomics design with high ecoustical performance Large light-touch buttons for easy operation New elegant, stable casing with loudspeaker New microphone specially develope by Bosch to deliver excellent speech intelligibility CCS-CML an exclusive design and high performance chairman unit enables the user to function as chairman of a conference or meeting. Similar in appearance to the Delegate Unit, the Chairman Unit CCS-CML also includes a ‘chairman priority” button. When pressed, the prioriry button causes all currently active delegate microphone to be temporarily or permanently muted, allowing the chairman to take control of the meeting. An optional chime can be selected to precede chaiman priority calls. The long microphone ideal for use on large conference table with wider depth. Controls and indicators Microphone with red illuminated indicator ring, lights when the microphone is ON. Two 3.5 mm stereo headphone sockets, one at each side, for headphone or recorder connection. Built-in loudspeaker, automatically muted when the microphone is ON. 7-pole circular female socket for loopthrough connection to the next unit 2m flying lead connection cable with sturdy moulded 7-pole circular male connector for connection to the previous unit or CU. Rotary volume control for headphones only Microphone ON/OFF push-button. Interconnection 2 m (78.7 in) cable terminated in a moulded 7-pole circular connector for connection to delegate unit or CPSU 7-pole circular female socket for loop-through connection to delegate units Two 3.5 mm (0.14 in) stereo headphone sockets   Technical Data Mounting table-top (portable or fixed mounting) Dimensions (H x W X D) 71 x 220 x 140 mm (2.8 x 8.66 x 5.51 in) (without microphone). Height is 132 mm (5.2 in) with microphone in horizontal position Length of microphone from mounting surface 488 mm (19.2 in) Weight 1 kg (2.2 lb) Colour (top and base) charcoal (PH 10736) Note: Both of the above internal switches are accessible by first removing a small plastic plate on the bottom of the chairman unit. If any delegate unit is permanently muted on activation of a ‘chairman priority’ button, the microphone must be reactivated using the ‘microphoneon’ button on the delegate unit.  For Detail View / Download Commercial Catalogue For Detail View / Download Technical Specification
