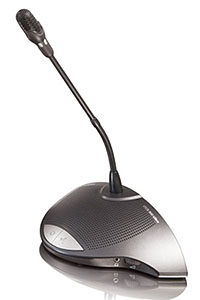

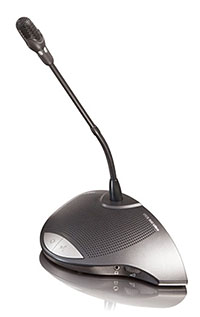

BOSCH CCSD 1000D (Short microphone)

Description CCSD 1000D Conference System Conference Unit CCSD-DS with Short Microphone Large light-touch buttons for easy operation Unique patent pending possible-to-speak indicator Plug and play functionality for ensuring fast installation and reconfiguration times Compact, attractive ergonomic design Easily configured as a participant device or chairperson’s device Immunity to mobile phone interference Conference Devices are connected in a daisy‑chain configuration to the Control Unit of a CCS 1000 Digital Conference System. Their plug‑and‑play functionality allows them to be conveniently connected to and removed from the system as required. A power down or restart of the system is not necessary, which ensures for fast installation and reconfiguration times.Participants can take part in a discussion by speaking into the microphone and listening to proceedings through the built‑in loudspeaker or (optional) headphones. Functions Possible-to-speak indication A white possible‑to‑speak indicator above the microphone button indicates when the microphone can be activated. Request‑to‑speak indication A green request‑to‑speak indicator above the microphone button and in the head of the microphone indicate when a request‑to‑speak has been added to the waiting list. The indicators flash green when the request‑to‑speak is first in the waiting list. Short microphone with flexible stem The fixed microphone with flexible stem can be easily adjusted to suit the user. For maximum comfort, a short 310 mm (12.2 in) . Built-in loudspeaker with volume control To ensure for optimum intelligibility, the loudspeaker volume of all Discussion Devices is centrally controlled from the Control Unit. Face-to-face meeting feeling An authentic face‑to‑face meeting feeling is achieved by allowing the loudspeaker and microphone to be on at the same time. Headphones socket The built‑in 3.5 mm (0.14 in) stereo headphones socket enables the speaker to be clearly heard, even when there is excessive background noise. Built‑in volume control for headphones For maximum comfort, the headphones volume can be adjusted by means of a rotary thumb wheel on the side of the Discussion Device. To prevent acoustic feedback from headphones to microphone, an option in the web browser application can be set to automatically reduce the headphones volume when the microphone is activated. GSM immunity Immunity to mobile phone interference ensures for clear, uninterrupted discussion. Configurable as a participant or chairperson’s device The Discussion Device can be quickly configured as a ‘chairperson’s device’, which enables a user to function as the chairperson at a meeting. No restart of the system is required. During a discussion, the chairperson can press and hold in the priority button to overrule all participant microphones. A chime is also sounded to announce that the chairperson is about to speak. Controls and Indicators Microphone button Color-coded LED indicator above microphone button for showing the following states: microphone on, request‑to‑speak, and possible‑to‑speak Light‑ring indicator in head of microphone Rotary thumbwheel on side of device for adjusting the headphones volume Concealed initialization button at base of device for reassigning the network address Concealed slide-switch at base of Discussion Device for configuring the Discussion Device as a ‘participant Discussion Device ’ or ‘chairperson’s Discussion Device’ Chairperson’s configuration only – separate microphone button and ‘priority button’ Connections  1 x 6‑pole circular female connector with cable locking recess – for loop‑through connection of Discussion Devices 1 x 3.5 mm (0.14 in) stereo headphones socket on side of device 1 x 2 m (78.7 in) cable with a 6‑pole circular male connector with cable lock    For Detail View / Download Commercial Catalogue For Detail View / Download Technical Specification
