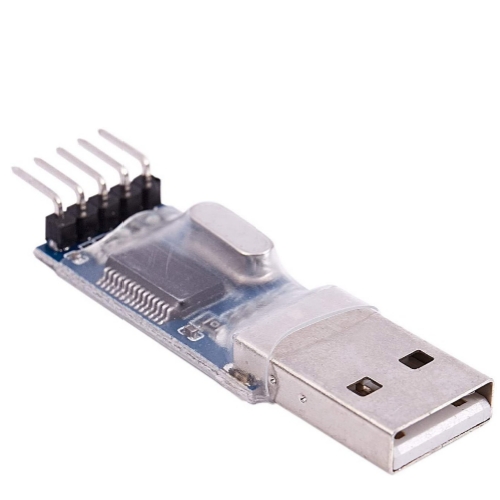

PL2303 USB To TTL Module

Pl2303 is a compact USB to TTL serial convert module based on PL2303HX IC, which is a signal chip USB to UART bridge IC. The module has 3 LEDs on board to indicate power, data reception, and data transmission. It has a 500mA auto recovery fuse on board that is used for protection purposes. PL2303 module is compliant with USB2.0 full-speed device with an integrated transceiver. This module allows an asynchronous serial data bus (UART) with a USB2.0full-speed function controller, USB transceiver, and full modem control signal. The module creates a virtual COM port using USB on your computer which can support various standard baud rates, from 300bps to 1Mbps, for serial communication. The device has 5V and 3.3V output power supply that you can use to power your projects directly. It is 5 I/O pins and all are clearly labeled on board. The module is coated with a high-quality transparent heat shrink tube that makes the PCB insulated from outside so that the board wont be burnt down by material shortcut. Package Includes : 1 x PL2303 USB To TTL Module
