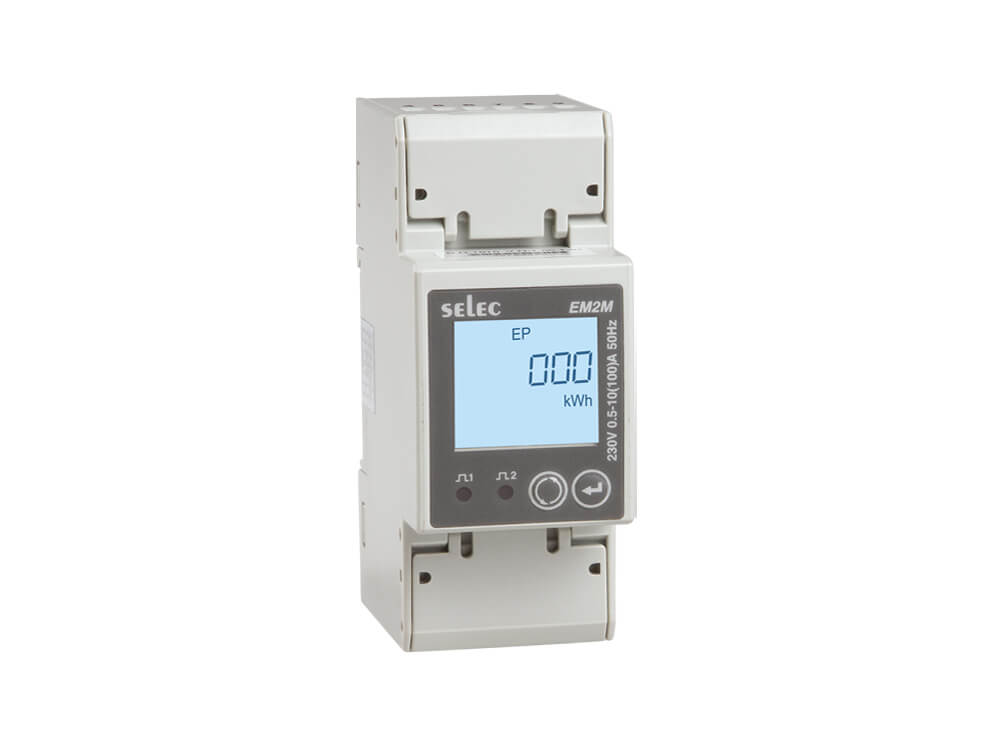

Direct Measuring Energy Meter-Single Phase-SELEC EM2M-1P-C-100A

Description Monitor and Save Electricity Using SELEC EM2M-1P-C-100A Brief Specification: Display Type LCD with Backlight Display Configuration 7 Digits Electrical Connection 1Ø – 2W Type of Output Two Pulse Outputs Communication Protocol RS485 and MODBUS RTU Features Self Powered, 100A Direct Connection, Bi-directional Import / Export Energy measurement, Two Pulse Outputs, Power (Active / Reactive/Apparent) Power Consumption 8VA Max Input Current Range 5A AC (Min – 10mA, Max – 100A) Supply Voltage 176 to 276V AC (Self – Powered), (45 to 65Hz) Mounting Type Din Rail Size 35 x 90mm Certification CE, MID
