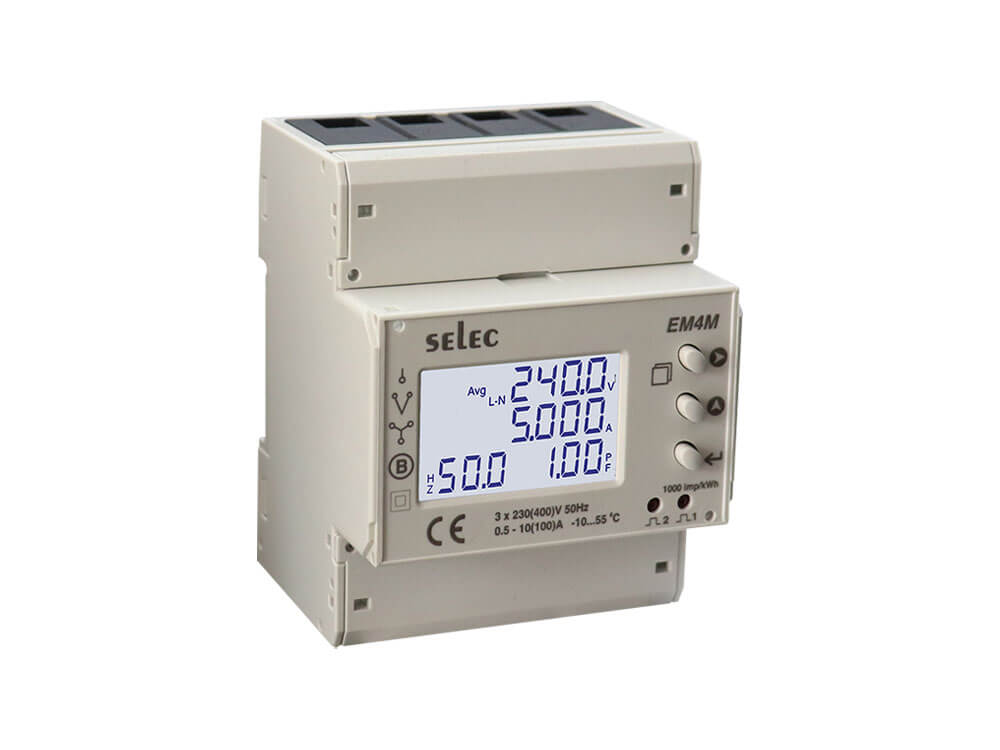

Direct Measuring Energy Meter-Three Phase-SELEC EM4M-3P-C-100A

Description SELEC EM4M-3P-C-100A: A Monitoring and Electricity Saving Device Brief Specification: Display Type LCD with Backlight Display Configuration 1 Row of 4 Digits, 2 Rows of 7 Digits Electrical Connection 1Ø – 2W, 3Ø – 3W, 3Ø – 4W Type of Output Two Pulse Outputs Communication Protocol RS485 and MODBUS RTU Features D.G Sensing, Self Powered, 100A Direct Connection, Multifunction parameter monitoring, Bi – directional Import / Export Energy measurement, Two Pulse Outputs, Power (Active / Reactive/Apparent), Max-Demand Power Power Consumption 4VA Max Input Current Range Ib: 10A (Min – 0.5A, Max – 100A) Supply Voltage 85 to 285V AC (L-N), 120 to 494V AC(L-L),45 to 65Hz (Self-Powered) Mounting Type Din Rail Size 70 x 90mm Certification CE
